CBM » Casing » AZZA CASE » VENUZ VC 201

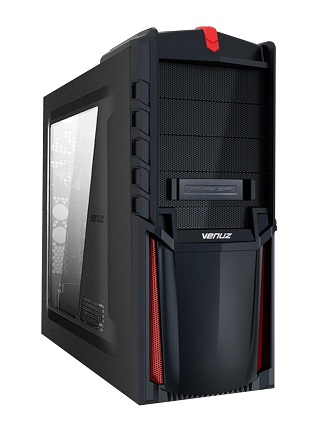

VENUZ VC 201

VENUZ VC 201

VC201T

Key Feature
● Transparent side panel type
● USB3.0 ready
● Easy Swap drive bays
● Ultimate cooling system
● Bottpm mount Power Supply
● Support up to 120mm water cooling
● Support up to 280mm graphics card
● Tool-less for easy assembling HDD/ SSD
drive bays

Specifications



Color

Black/ Black (inside chassis)

Side Panel window

Transparent

With power supply

No

CPU Cooler Compatibility

Up to 180mm

Motherboard Compatibility

Full ATX, Micro ATX

Power Supply Locations

Power Supply located on the bottom, two ways to install power supply

Expansion



External 5.25" Drive Bay

3

Internal 3.5 Drive Bays

4

External 3.5 Drive Bays

1

Internal 2.5 Drive Bays

1

Easy Swap Drive Bays

1x3.5" Easy Swap Drive Bays

Expansion Slots

7

Front Ports



Front Ports

1x USB 3.0, 1xUSB 2.0, Esata, HD Audio, Mic

Cooling fans support (Option)

Front

1x120mm(or 90mm, or 80mm) to intake cool air for HDD cooling

Back

1x120mm(or 90mm, or 80mm) to exhaust hot air

Top

2x120mm(or 90mm, or 80mm) to exhaust hot air

Bottom

1x120mm(or 90mm, or 80mm) to intake cool air

Physical Spec

1x3.5" Easy Swap Drive Bays for easy installation of 3.5" HDD

Dimensions (HxWxD)

19"x8"x18" (483mmx204mmx458mm)

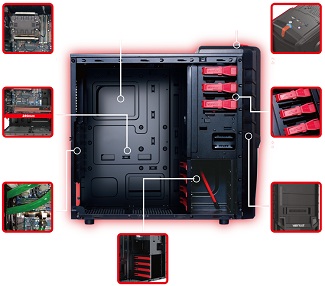

Features



Expandability with 10 Drive Bays

Featuring four 5.25" external drive bays, and six 3.5" drive bays

Easy Swap Drive Bays



Maximum Capacity Water Cooling

Support water cooling  radiator up to 120mm.

Supports Lengthiest of Graphics Cards

Support up to 280mm graphics cards.

Easy CPU Cooler Installation

A cut-out hole for easy CPU cooler installation -- no need to
remove motherboard

Reusable PCI slots

7 PCI slots with preserved screw holes

Tool-less design

Tool-less design for both 3.5" and 5.25" devices
