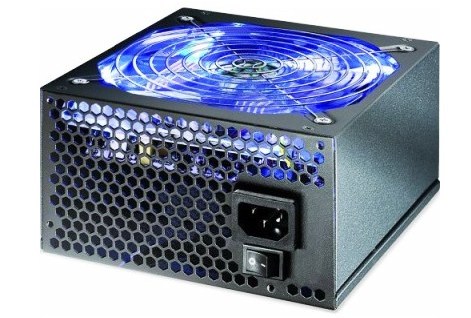

AZZA DYNAMO 650W

AZZA DYNAMO 650W

Spec
Model
Model Name Dynamo 650
Model Number PSAZ-650B14
Spec
Type ATX 12V Ver 2.2
Maximum Power 650W
Fans 1x140mm Blue LED Fan
PFC No
Main Connector 20+4pin, 8(4+4)pin
12V Rails 2 lines
PCI-E Connector 1x6pin, 1x(6+2)pin
SLI Yes
CrossFire Yes
Efficiency >78%
Efficiency Certify No
Over Voltage Protection Yes
Over Load Protection Yes
Input Voltage 115V/220V
Input Frequency Range 50Hz/60Hz
Input Current 10.7A/6.2A
Output +3.3V@24A, +5V@32A, +12V@38A
-12V@0.6A, +5VSB@2.0A
MTBF 100,000 hrs at 25°C, Full Load
Feature
Connector

1x20+4 Pin Motherboard
1x8(4+4)Pin ATX Connector
1xSLI (6pin & 6+2pin)Connector
4xSATA Connector
6xIDE Connector
1xFloppy Connector

VER 2.2
Fan 1x140mm Blue LED Super Silent Fan
Warranty 2 Years Parts Limited
2 Years Labor Limited

AC INPUT 115V~240V
DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5VSB
650W Min output  current 1.0A 1.0A 0.5A 0.5A 0A 0.1A
Max output Curren 24A 32A 21A 22A 0.6A 2.0A
Max combined Wattage 200W 456W(38A) 7.2W 10W
MAX 650W

20+4 pin 8 pin P4 MB SATA Peripheral FDD PCI-E
x1 x1 x1 x4 x6 x1 1x6pin+1x8pin
