CBM » Set-Top Box » Set-Top Box DVB-C

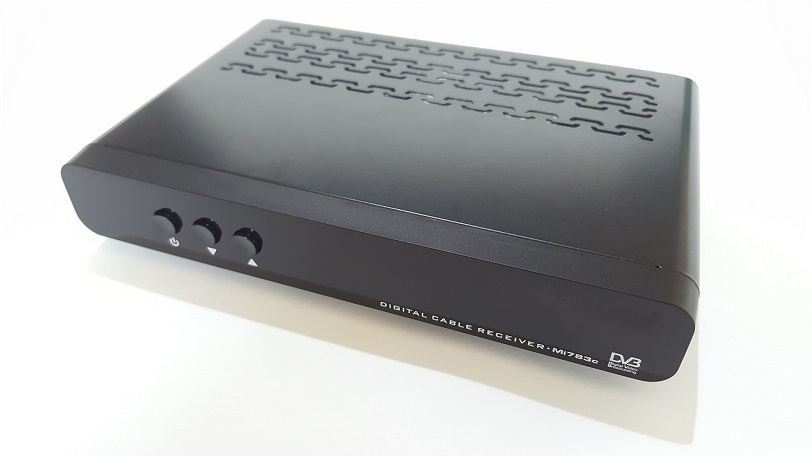

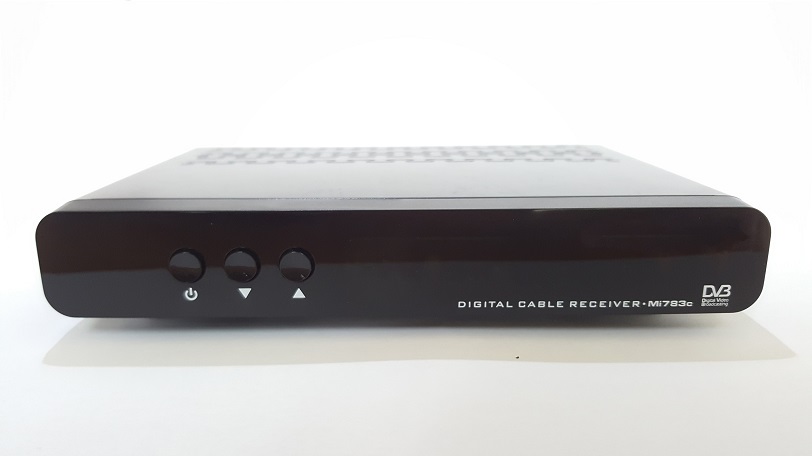

Set-Top Box DVB-C

Set-Top Box DVB-C

System
CPU / OS : MSD5C35 / eCOS
Flash memory : 8Mbytes Flash embedded in MSD5C35
Unified memory : 64Mbytes DDR embedded in MSD5C35

Video Decoder
Video Standards : MPEG-1 ISO/IEC 11172-2
: MPEG-2 MP@ML ISO/IEC 13818-2 H.264 SD
Video OUT : CVBS OUT with CGMS-A supported

Audio Decoder
Audio Standards : MPEG-1 layer I & layer II
Audio OUT : AL/AR OUT

Connectivity
RS-232 : Up to 115200bps
USB Port : One, HOST

Power adaptor
Main input : 90 - 270 VAC~, 50/60 Hz 2-pin AC Plug
DC output to STB : 12V@1A DC lead: 1.5m
Power Consumption : Typical: <10W, Standby: TBD, Max.: 12W


Certification
1. ROHS Compliant
2. POSTEL certificate
3. Irdeto LD/HL DVT
