CBM » Casing » AZZA CASE » Fantom 900
Fantom 900

Fantom 900

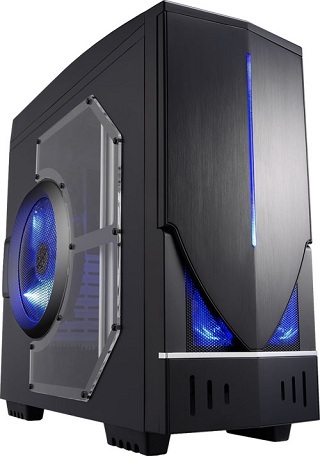

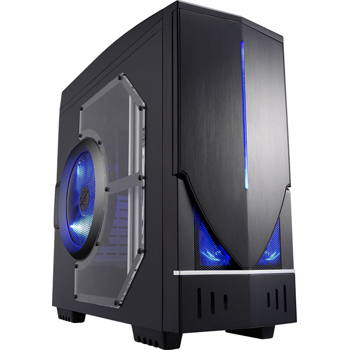

The CBM Fantom 900 case is designed especially with the needs of PC Enthusiasts and Gamers in mind. With your gaming hardware producing a ton of heat, choosing the right case with superb thermal management becomes vital. This PC chassis provides an ultra-efficient cooling system to keep your components air-cooled while you are on the hunt. A monster 230mm blue LED fan is top-mounted to exhaust the hot air produced as a result of CPU operation. A second monster 230mm blue LED fan is installed on the side for cold air intake. One 140mm blue LED fan is built-in locate in the front panel, drawing cold air in to maintain the HDD cage in low temperature. And a120mm fan in the back panel exhausts hot air out of the system. In summary, Fantom's superior thermal management includes two 230mm monster fans, one 140mm fan and one 120mm fan that work en masse to provide an exceptional cooling system for your gaming needs.

An adjustable PSU support bridge is located in the bottom. You may choose to install the PSU with the fan facing either up or down, for air intake or exhaust. The pre-drilled fan holes right underneath all but help to eliminate the PSU as one of the heat sources in the case!

There is more! With five 5.25" and eight 3.5" drives bays, you'll have all the room you need to build your dream system in this case. The USB and Audio ports are conveniently located on the top of the case, designed for easy access. Furthermore, cable can be routed behind the pre-drilled motherboard tray, thus minimizing clutter and improving airflow.

Manufactured with high-quality workmanship and designed with a stylish exterior, the CBM Fantom 900 has gaming performance squeezed into a stellar value computer case.

Specifications:
Model Name: Fantom 900
Model Number: CSAZ-900
Type: ATX Mid Tower
Color: Black
Material: Japanese SECC Steel/Aluminum
With Side Panel Window: Yes
With Power Supply: No
Motherboard Compatibility: ATX, Micro-ATX, E-ATX(12"x10.3")
Expansion
External 5.25" Drive Bay: 5
External 3.5" Drive Bay: 1
Internal 3.5" Drive Bay: 4
Expansion: 7
Front Ports
Front Ports 2 x USB, Audio, Mac
Cooling System
230mm Fan: 1 x 230mm blue LED silent fan (24DBA) on top

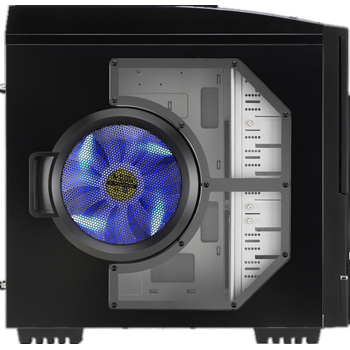

1 x 230mm blue LED silent fan (24DBA) on the side

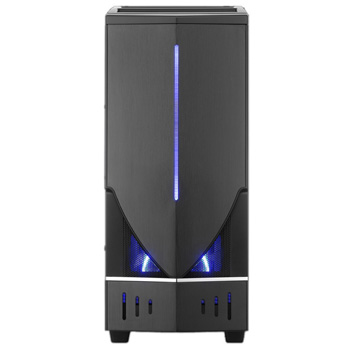

140mm Fan: 1x140mm blue LED silent fan (19DBA) in front
120mm Fan: 1x120mm fan in rear
Physical Spec
Dimensions (H x W x D): 20.5" (520mm) x 8.1" (205mm) x 19.7" (500mm)

Feature:
Ultra-efficiency Cooling System: 1 x 230mm top fan (exhaust)
1 x 230mm side fan (intake)
2x 140mm front fan (intake), providing exceptional air flow to cool the HDD
1 x 120mm rear fan (exhaust)

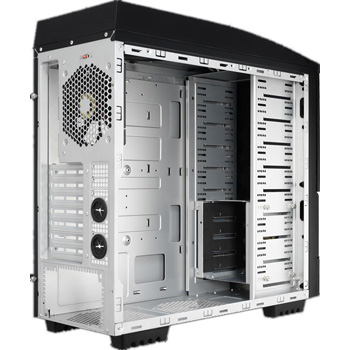

Bottom-mounted Power Supply: Power supply is bottom-mounted, can be installed facing either up or down. Pre-drilled holes located at bottom, allowing efficient air flow when power supply is installed facing downward

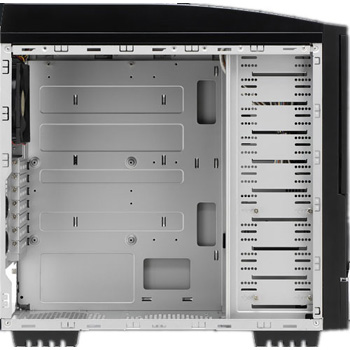

Cable Management: Cable is organized behind the pre-drilled motherboard tray, allowing better cable routing and internal air flow?
Easy Assembling: Thumb screw design for easy assembling of optical drive and HDD; Thumb screw design also for the side panel
Maximum Compatibility: Compatible with ATX, Micro ATX and all kinds of Nvidia, ATI long graphic card, and most water cooling systems;Server-like HDD cages can accommodate up to 4 HDD; equipped with 1 x 140mm front fan for overheat prevention

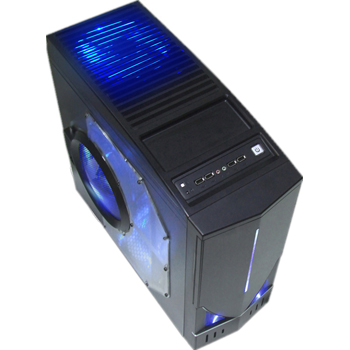

USB & Audio Ports Located on Top: USB & audio ports are located on the top panel, allowing easy access
