CBM » Casing » AZZA CASE » Solano 1000/1000R

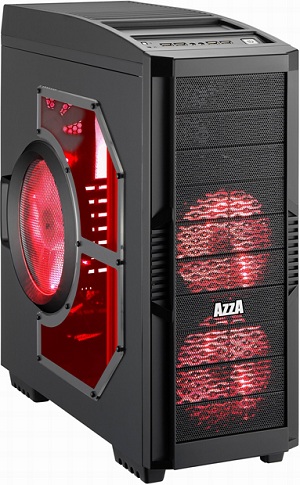

Solano 1000/1000R

Solano 1000/1000R

Introducing the all-new CBM Solano 1000 gaming case! Its innovative design in so many aspects will satisfy the needs of the extreme computer gamer and power user. The case is designed for maximum thermal management with fans installed everywhere to keep your components cool. A 230mm blue LED super fan is mounted on the top for main ventilation. A second 230mm blue LED super fan is built-in on the side panel to facilitate CPU cooling. Two additional 140mm blue LED fans are installed in the front panel to boost the cooling of HDD cage. And a 120mm fan is mounted in the back panel vented to the outside. To sum it up for you, a total of 2x230mm fans, 2x140mm fans and 1x120mm fan work synergistically to provide you unprecedented airflow.

This full tower case supports ATX, and Micro ATX motherboards and the thumb screw design allows for easy installation of seven PCI expansion cards without tools. A plethora of drives bays, including up to ten 5.25" and eight 3.5" bays, allow you to grow your system over time. All the bays have a thumb screw design for easy assembly as well.

That's not all! A removable HDD cage can accommodate up to eight HDD's. The two front intake 140 mm fans are especially designed to boost HDD cooling. Moreover, an adjustable PSU support bridge is located in the bottom and you have the option of installing the PSU with the fan facing either up or down, for air intake or exhaust. The pre-drilled fan holes right underneath all but help to eliminate the PSU as one of the heat sources in the case! Furthermore, since cable can be organized behind the pre-drilled motherboard tray, this case comes with a superior cable management system that allows for ameliorated cable routing and improved airflow.

This PC chassis is manufactured with high-quality Japanese steel, solid and sturdy yet not weighty. The interior has a stylish black paint finish. With its high-end features along with the superb exterior design, the CBM Solano is the ultimate choice for your gaming needs. You can count on impressing your friends at the next LAN party!

Specifications:
Model Name: Solano 1000
Model Number: CSAZ-1000
Type: ATX Full Tower
Color: Black/Black (internal chassis)
Material: Japanese SECC Steel/Metal mesh in front
With Side Panel Window: Yes
With Power Supply: No
Motherboard Compatibility: ATX, Micro-ATX, E-ATX(12"x10.3")
Expansion
External 5.25" Drive Bay: 10
External 3.5" Drive Bay: 1
Internal 3.5" Drive Bay: 8
Expansion: 7
Front Ports
Front Ports 2 x USB, e-SATA, Audio, Mic
Cooling System
230mm Fan: 1 x 230mm blue LED silent fan (24DBA) on top
1 x 230mm blue LED silent fan (24DBA) on the side
140mm Fan: 2x140mm blue LED silent fan (19DBA) in front
120mm Fan: 1x120mm fan in rear
Physical Spec
Dimensions (H x W x D): 21.5" (545mm) x 8.1" (213mm) x 19.7" (500mm)

Feature:
Ultra-efficiency Cooling System: 1 x 230mm top fan (exhaust)
1 x 230mm side fan (intake)
2x 140mm front fan (intake), providing exceptional air flow to cool the HDD
1 x 120mm rear fan (exhaust)
Bottom-mounted Power Supply: Power supply is bottom-mounted, can be installed facing either up or down. Pre-drilled holes located at bottom, allowing efficient air flow when power supply is installed facing downward
Optimized Cable Management: Cable is organized behind the pre-drilled motherboard tray,? allowing better cable routing and internal air flow
Easy Assembling: Thumb screw design for easy assembling of optical drive and HDD; thumb screw design also for the side panel
Maximum Compatibility: Compatible with ATX, Micro ATX and all kinds of Nvidia, ATI long graphic card, and most water cooling systems
Server-like HDD cage can accommodate up to 8 HDD, equipped with? 2 x 140mm front fans for overheat prevention
USB & Audio Ports Located on Top: USB & eSATA & audio ports located on the top panel, allowing easy access
