Toledo 301

Toledo 301

The AZZA Toledo 310 should end your unremitting compromise between value and budget! With performance, features, and quality found only in high-end cases, designed with an eye-catching exterior, AZZA invites you to build your next power rig with its Toledo 301.

This mid-tower chassis has massive storage capacity, with four external 5.25" drive bays, one external 3.5" bay, four internal 3.5" drive bays, two 2.5¡±SSD, HDD drive bays and seven expansion. The assembly is a breeze with AZZA¡¯s screwless design. All your components will stay cool with one monster 250mm blue side LED fan, a 120 mm front blue LED fan, and one black 120mm in the rear. Enhanced ventilation can be achieved by your option to add 2 x 120mm fans on top. It supports water cooling radiator up to the size of 240mm, and the longest VGA card in the market up to 340mm (ATI 5970). It can accommodate Micro ATX and ATX motherboards and is compatible with all kinds of Nvidia. In addition, the painted black interior complements the black exterior and just adds to its overall sophistication and refinement.

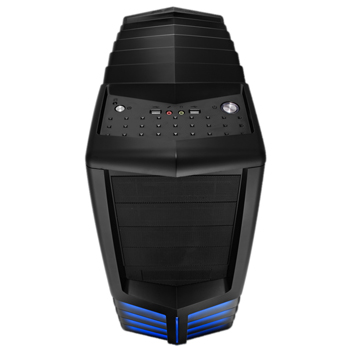

Easy USB 2.0 and audio connectivity are provided on the top I/O panel. An adjustable PSU support bridge is located in the bottom and you may install the PSU with the fan either facing up or down, for air intake or exhaust. The pre-drilled fan holes right underneath all but help to eliminate the PSU as one of the heat sources in the case! Furthermore, since cable can be organized behind the pre-drilled motherboard tray, this case comes with a superior cable management system that allows for improved cable routing and enhanced airflow. Lower you budget, not your expectation with the AZZA Toledo 301!


Specifications:
Model Name: Toledo
Model Number: CSAZ-301
Type: ATX Mid Tower
Color: Black (exterior)/Black (interior)
Material: SECC Steel

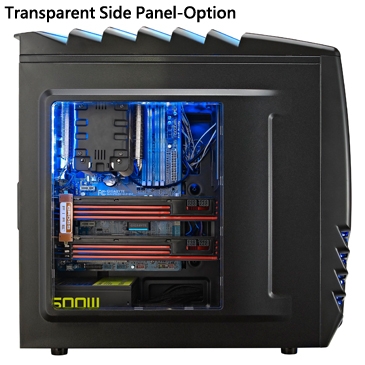

With Side Panel Window: Np
With Power Supply: No
Motherboard Compatibility: ATX, Full ATX, Micro ATX
Expansion
External 5.25" Drive Bay: 4
External 3.5" Drive Bay: 1
Internal 2.5" Drive Bay: 3+2 x 2.5"SSD, HDD Drive Bays
Internal 3.5" Drive Bay: 4
Expansion: 7
Front Ports
Front Ports 2 x USB, Audio, Mic
Cooling System
250mm Fan: 1x250mm Blue LED fan on the side
120mm Fan: 1x120mm Blue LED fan in front, 1x120mm Black fan in rear
Physical Spec
Dimensions (H x W x D): 19.5" x 9.1" x 20.1" (495mm x 231mm x 510mm)

Feature:

Ultimate Cooling System:
Total support 6 Fans

1x250mm Blue LED fan on the side for air intake for VGA card and CPU
1x120mm Blue LED fan in front for air intake for the HDD
1x 120mm black fan in rear for hot air exhaustion
2x120mm fan on top (optional) to exhaust hot air
Support Water Cooling support water cooling radiator up to size 240mm

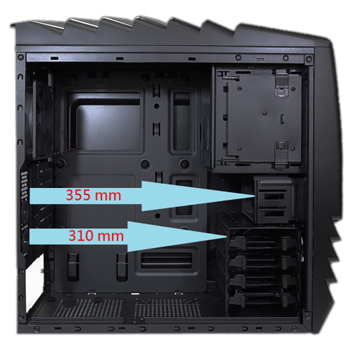

Support Longest VGA card support up to 340mm (ATI 5970) VGA card

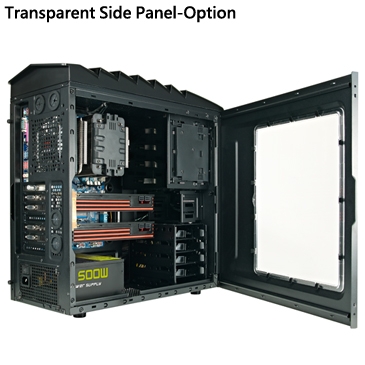

Bottom Mount Power Supply: Power Supply located on the bottom, two ways to install power supply; providing more efficient airflow
Cable Management: Cable is hidden behind the pre-drilled motherboard tray; better cable management and better air flow
Maximum Compatibility: Compatible with ATX, Micro ATX and all kinds of Nvidia, ATI long graphic card up to 340mm, and all kinds of water cooling system; support radiator up to size 240mm
Easy installation of CPU Cooler A pre-cut hole for an easy installation of CPU cooler, eliminating the need to remove the motherboard
Screwless design for HDD 4x Easy Screwless HDD trays and 90 degree turn for HD cage for easy installation of HD, support 3+2 x HD holders for 2.5¡± SSD and HD
